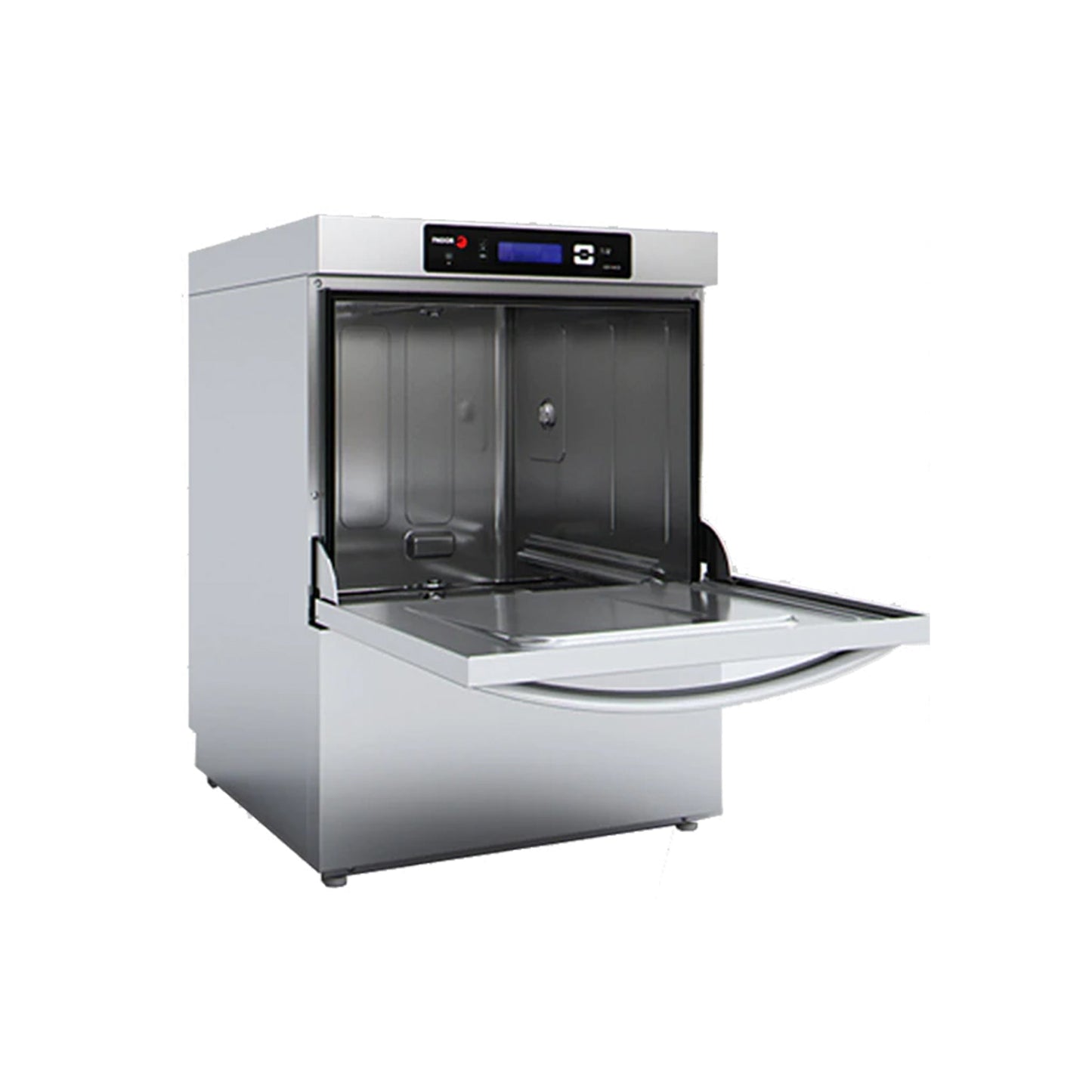

High Temp Dishwasher - Undercounter

Specification Sheet

Functions and Benefits:

Fagor’s Concept + range of dishwashers offers a highly efficient
and effective washing and rinsing system, becoming the perfect
solution for those locations with low pressure water network and
high production requirements. Built in durable stainless steel with
electromechanical components and simple digital controls for a
user-friendly operation.

• Effi Wash: Optimized hydraulic system provides a strong mechanical action combined with the optimum clean water in the tank. Balanced power keeps the perfect sanitation temperature during the cycle of the wash.
• Effi Rinse: Built-in water pressure pump and air break system assuring the best sanitation result, with a linear 180°F full rinsing cycle. It also works with low incoming water pressure, fitting in installations that do not reach the minimum recommended 15-25 psi.
• Effi Silent: Full double skin provides extra insulation on body and door for noise reduction and thermal efficiency.
• Soft Start: Wash-pump power control that prevents wares from damage at the beginning of the washing cycle while assuring a low noise level on location.
• Multi Power: Easily adapt the power level to your needs. Choose the maximum power for the highest production requirements or reduce consumption with a low power set up.
• Digital Controls: simple digital control panel with digital temperature display for intuitive and user-friendly operation.

Construction:

• New double skin stainless steel body structure with stamped design (wash tank, rack guides, control panel..), made to resist strong usage.
• AISI-304 Stainless steel double wash / rinsing arms and tray filters.
• Higher clearance : 15 1/4”.
• Rock counterbalanced door. Double spring and stainless steel hinge system tested to resist the strongest usage. Safe 3 step open system: (1) remove steam, (2) check rack, and (3) remove/ place rack.
• IPX4 - Stronger protection against water hose cleaning and external humidity.
• Multi-connection box: Conveniently located electrical box for easy access that improves maintenance and allows for single or three fase connection in the field and multitension.
• Built-in drain pump, detergent and rinse aid dispenser.
• Built-in rinse pump.

• Racks for dishes, glasses and trays
• Cutlery containers and grids
• 6” & 16” high base stands
• Drain tempering valve

Quick View:

Dimensions: W x D x H 23-5/8” x 23-5/8” x 33-11/16”
Weight : net/crated (lbs) 134 / 174
Voltage: 208-230V/1-3Ph/60Hz
Total Power: (half / 2/3rd / full) 3.7 - 4.6 - 6.5 KW
Wash pump ( HP ): 3/4
Water Consumption per Rack: 0.63 Gal.
Water Consumption Per Hour (Max): 23.31 Gal.
