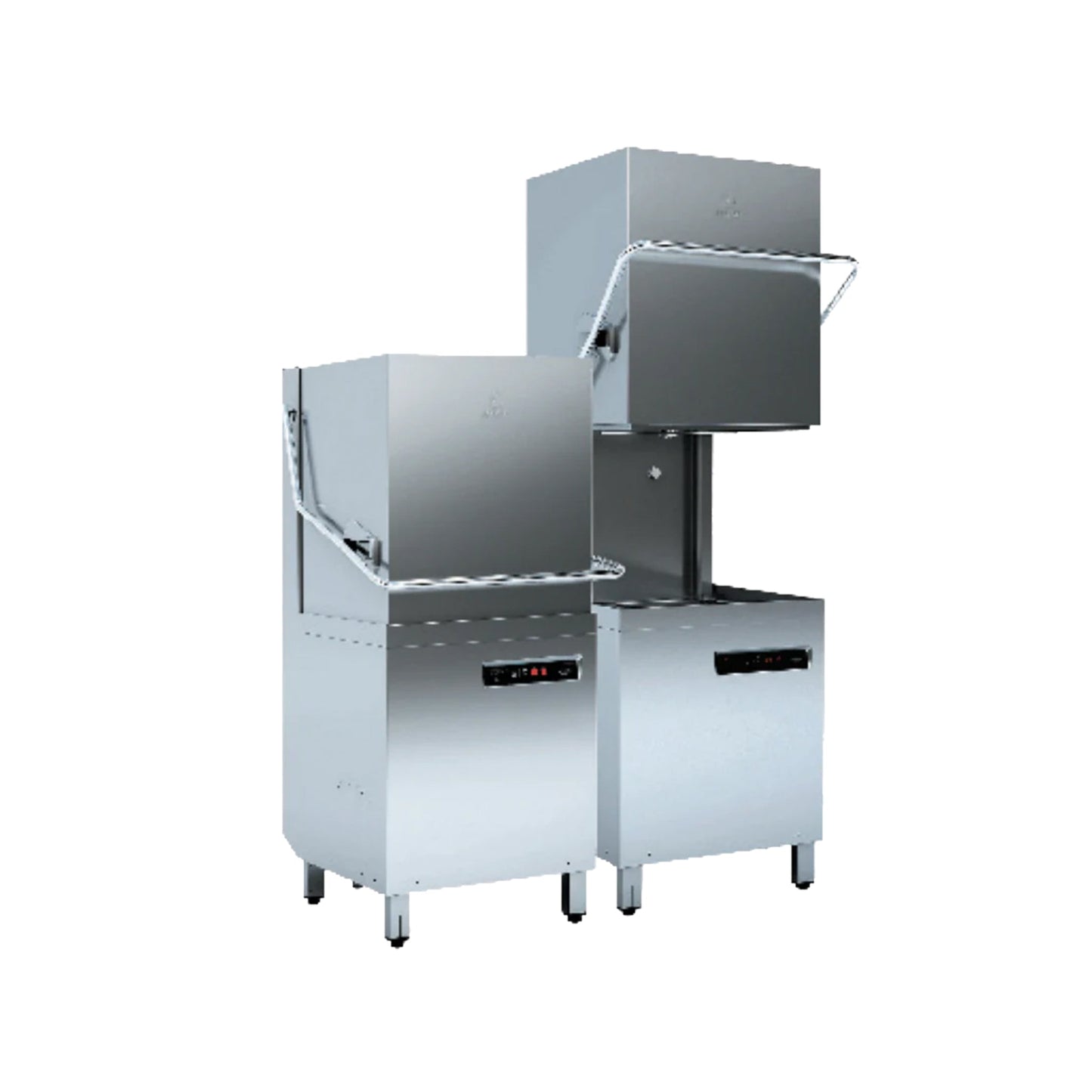

High Temp Dishwasher - Hoodtype

Specification Sheet

Functions and Benefits:

Fagor’s Concept + range of dishwashers offers a highly efficient
and effective washing and rinsing system, becoming the perfect
solution for those locations with low pressure water network and
high production requirements. Built in durable stainless steel with
electromechanical components and simple digital controls for a
user-friendly operation.

• Effi Wash: Optimized hydraulic system provides a strong mechanical action combined with the optimum clean water in the tank. Balanced power keeps the perfect sanitation temperature during the cycle of the wash.
• Effi Rinse: Built-in water pressure pump and air break system assuring the best sanitation result, with a linear 180°F full rinsing cycle. It also works with low input water pressure, fitting in installations that do not reach the minumum recommended 15 -25 psi.
• Soft Start: Wash-pump power control that prevents wares from damage at the beginning of the washing cycle while assuring a low noise level in your facility.
• Digital Controls: simple digital control panel for intuitive and user-friendly operation.

• New stainless steel body structure with stamped design (wash tank, rack guides, control panel..), made to resist heavy usage.
• AISI-304 Stainless steel. Independent wash & rinsing arms, tray filters.
• Field adjustable straight-thru or corner operations.
• Higher clearance: 17 3/8”.
• Advance soft-lift countrebalanced system and magnetic switch for the hood.
• IPX4 - Stronger protection against water hose cleaning and external humidity.
• Multi-connection box: Conveniently located electrical box for easy access that improves maintenance and allows for single or three fase connection in the field and multitension.
• Built-in detergent and rinse aid dispenser.
• Built-in rinse pump.

Accessories:

• Racks for dishes, glasses and trays
• Cutlery containers
• Drain tempering valve

Quick View:

Dimensions W x D x H: 31 1/2” x 35” x 68”
Weight: (net/crated) lbs 347 / 363
Voltage: 208-230V/1-3Ph/60Hz
Total power: 12.5 - 18 KW
Wash pump: (2) 3/4
Water Consumption Per Rack:  0.63 Gal.
Water Consumption Per Hour (Max):  37.80 Gal.
